THE 11 PROOFS OF EXCELLENT SPRAYING
BBLeap: The New Standard in Spraying
Traditional spraying is built on compromises, averages, and guesswork. We are here to change that. Welcome to Excellent Spraying—powered by the LeapBox.
Download in dutch here
WHY TRADITIONAL SPRAYING TECHNOLOGIES FALL SHORT
Fields are not uniform; each plant is unique, and so are its individual needs. Yet, traditional systems lock your flow rate, droplet size, and target dose entirely to machine pressure and driving speed. Low pressure creates giant droplets, while high pressure creates fine drift—leaving you constantly guessing between leaf burn or under-protected crops.
RETROFIT YOUR SPRAYER WITH THE LEAPBOX CORE
The LeapBox fits onto any trailed, mounted, or self-propelled sprayer, giving each nozzle its own independent brain. It reacts in milliseconds to keep pressure, rate, and droplet size perfectly stable—no matter the speed, curve, or boom section. Installation is simple and fully handled by BBLeap or our certified partners, uncomplicating your boom to turn your existing machine into a plant precision powerhouse.
THE 11 PROOFS OF EXCELLENT SPRAYING
We don’t believe in abstract promises or “close enough”. Excellent Spraying is built on 11 field-tested, verifiable proofs. Click or hover on each proof to see the technical reality behind the promise.
1

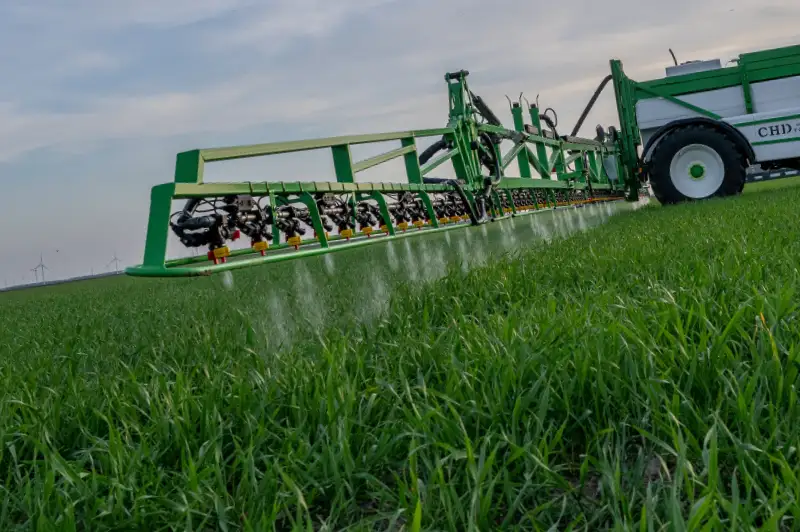

100% Constant
Pressure
An actively regulated pressure system ensures a perfectly stable line pressure. Unlike traditional systems that alter pressure to adjust application volume, BBLeap maintains a constant pressure setting, achieving precise coverage without ever compromising your target droplet size.
2
100% Right
Dose
Each valve operates with a fully adjustable duty cycle (0–100%) and pulse frequency (0–100 Hz). Based on real-time driving speed and target application volume, the system continuously adjusts both on the fly to deliver the exact required dose every single moment.
3
100% Identical Droplet Spectrum
Each valve switches from fully closed to fully open in just 0.8 ms (1/1250 of a second). Combined with constant line pressure, this ultra-sharp activation ensures every single droplet is identical, guaranteeing maximum chemical efficacy under all field conditions.

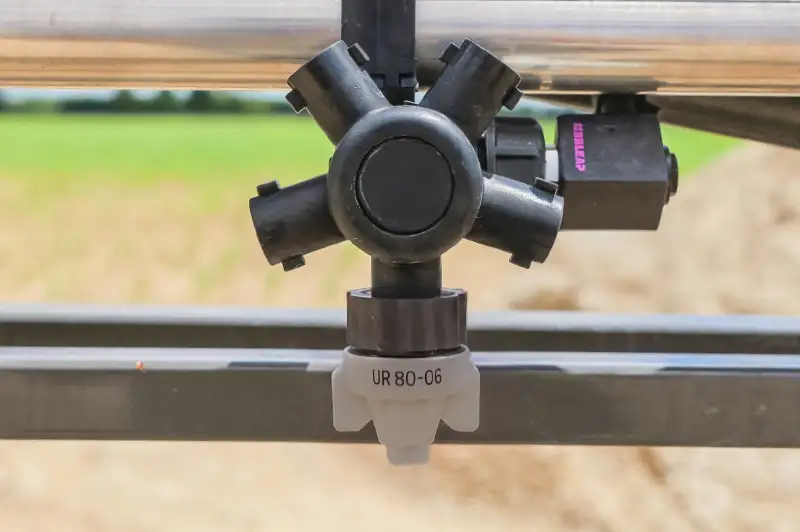

4
One Nozzle for
All Applications
By utilizing a broad duty cycle operating window, the system works efficiently with a single larger nozzle size. It delivers high application volumes at higher duty cycles and low dosages at lower ones, enabling an exceptionally wide application range without ever stopping to switch nozzle tips.
5

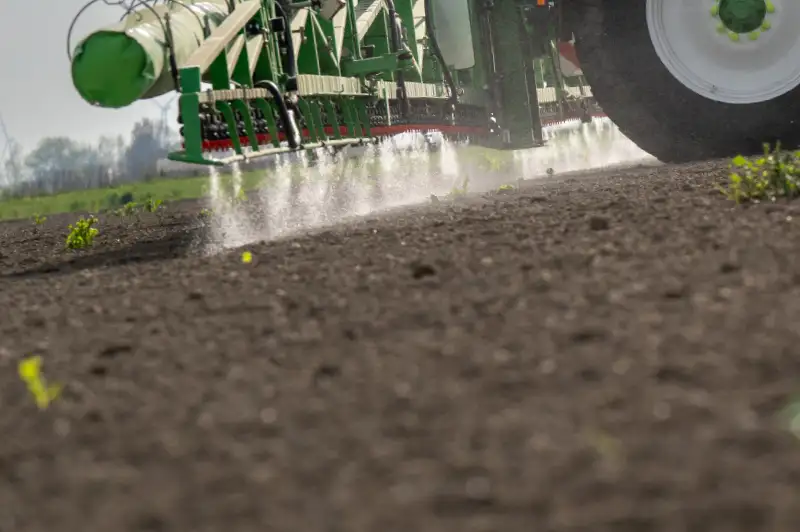

Perfect Start
and Stop
When taking off from a complete stop or starting at near-zero speed on the headland, valve pulsing frequency is automatically governed by forward movement. Scaling instantly from 0 to 100 Hz, the system delivers the exact rate right from the very first drop.

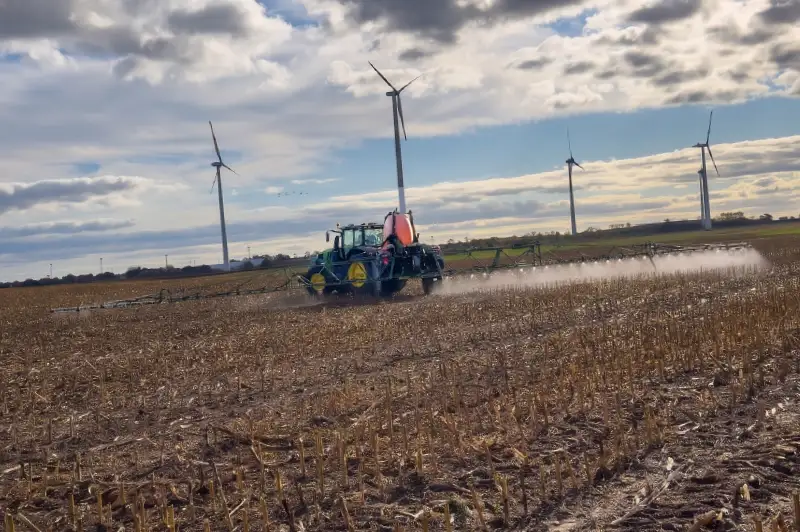

6
100% Turn
Compensation
During turns, the outside of your boom moves rapidly while the inner boom crawls. The LeapBox automatically adjusts both frequency and duty cycle for every single nozzle independently, maintaining perfect target dosing with zero inner-boom overspray or outer-boom thinning.

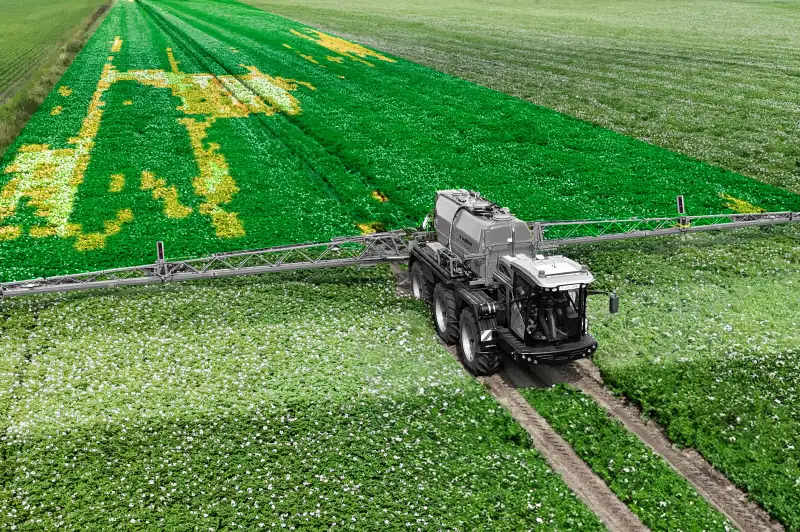

7
Nozzle-by-Nozzle
Variable Rate
Every nozzle is controlled independently for localized rate changes across the boom width. Operating with a 40 Hz system update rate, it maintains full execution accuracy at speeds up to 36 km/h, bringing high-definition LeapCat task maps down to a localized 25 x 25 cm detail cell size.
8

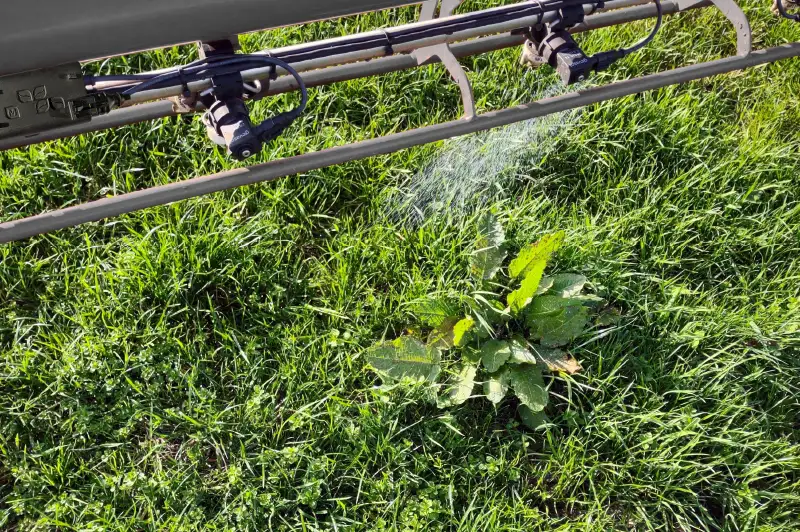

Instant
Response
Ultra-fast 0.8-millisecond valve actuation combined with four dedicated high-speed CAN lines running down the length of the boom forms the communication backbone of the system. This eliminates chemical delivery lag, executing target adjustments exactly where needed.

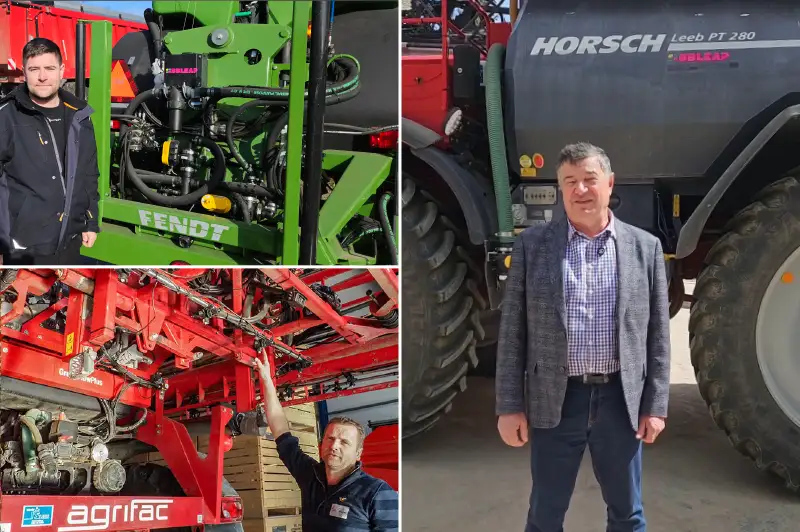

9
Works on
Every Sprayer
This technology is completely color-blind. Whether you install it as a retrofit on a 30-year-old machine or buy it integrated into a brand-new model, you retain your familiar tractor terminal functionality upgraded with advanced precision capabilities.

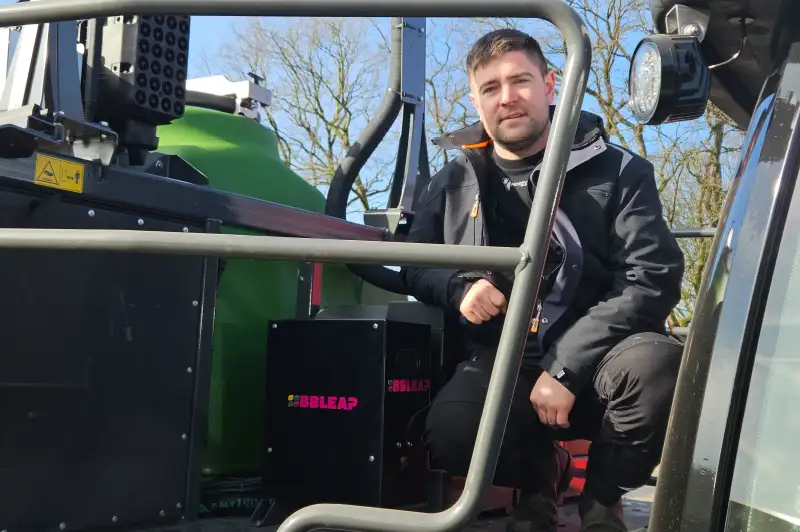

10
Reliable
& Low Maintenance
Built for raw uptime in demanding field conditions. By utilizing heavy-duty components like molded cabling assemblies, the system eliminates traditional failure points. Every unit is fully connected, allowing factory support to troubleshoot or service your machine remotely from anywhere in the world.
11

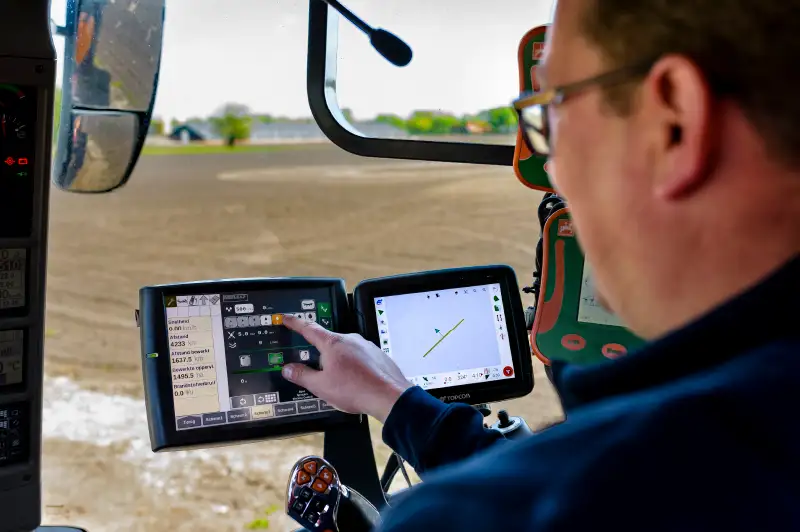

Ease
of Operation
We have stripped the stress and complexity out of precision applications. Any driver can achieve optimal results immediately. Simply input your desired application volume (liters per hectare) and preferred droplet size profile, and the system automatically coordinates all adjustments.
“Turn compensation is fantastic—the outside gets the right amount and the inside gets the right amount.”
Rick Carpenter, Pendalup Farm
Just being able to set your droplet size and spray at any speed, not having to worry about your pressure changing, makes my coverage so much better.”
Michael Eva, Roseworthy Farms
The biggest saving is that it works better; you can vary endlessly per 25 centimetres.”
Harmannus Begeman
If You Claim It, Prove It.
We don’t rely on abstract promises or slick marketing campaigns. We stand behind our real-world field metrics so completely that our executive leadership has signed the 100% Spraying Contract.
Use this exact document as your ultimate technology benchmark when evaluating any equipment supplier or sprayer manufacturer. Take our 11 Proofs directly to them and demand they sign, line by line, confirming their machine can deliver this exact level of plant-level precision under real field conditions. Separate sales promises from actual field performance.
